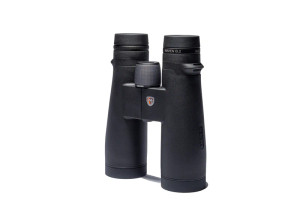

Maven Binoculars - B.2 - 9x45

Maven
SKU:
MVB20945BLD3

Log in for pricing

(No reviews yet)
Current Stock:

The Maven B.2 Binocular is a purpose-built optic for those who demand superior low-light performance. For those seeking that perfect balance between magnification and low-light gathering capabilities, the B.2 features an Abbe-Koenig prism and an optical field flattener to take advantage of every ounce of light and is specifically designed to handle early morning, late evening, and dimly-lit situations. As with the entire B Series line-up, the B.2 also features tack-sharp edge-to-edge clarity and a silky focus mechanism.

The Maven B Series represents our elite line of optics, designed to fit your specific needs, delivered for a fraction of comparable binoculars’ costs and stacks up with the most celebrated and expensive binoculars in the world.  Our modern sportsman-inspired designs are paired with the best available materials and state of the art technology to create an uncompromising optic.

Includes neoprene neck strap, lens caps and double-layered microfibre storage bag.

HIGHLIGHTS
-Premium Model
-Size: 7.1 in.
-Weight: 33.3 oz.
-Extra-low Dispersion ED Glass
-Waterproof and Fog Proof
-Fully Multi-Coated Lenses
-Field Flattening Optical System
-Exceptionally Clear, Bright, High Contrast Image
-Excellent Color Fidelity
-Tripod Adaptable
-Lifetime Warranty

Binocular Comparison Chart (PDF)
Binocular Manual (PDF)

B.2 Specifications:

Magnification 9x
Obj. lens diameter 45mm
Exit pupil 5mm
Field of View (FOV) 7.2°
Apparent FOV (FOV x Power) 64.8°
Field of view (ft/1000 yds) 377
Brightness 25
Light transmission (%) 93.70%
Twilight factor 20.1
Multi Position Eyecups Y/N Yes
Eye relief 17.3mm
Near focus 4.9ft
Eye width adjustment 56~75mm
Dimension WxHxD 5.7x7.1x2.1
Weight 33.25 oz
Lens constr. obj. 3 groups 4 elements (ED)
Lens constr. ocular 5 groups 6 elements
Prisms type Abbe-Koenig
Prism reflective coating type N/A
Phase Correction Coating N/A
ED glass Yes
Lens coating Scratch and Oil Resistant
Diopter correction (dpt) +/-4
Pressure tested to what pressure 1m for 30 min. (IPX7)
Storage temperature -40°~158°F
Functional temperature -13°~140°F
Frame material Magnesium
Internal gas purged Nitrogen
Tripod Adaptable Y/N Yes
Origin Japanese components assembled in the US
