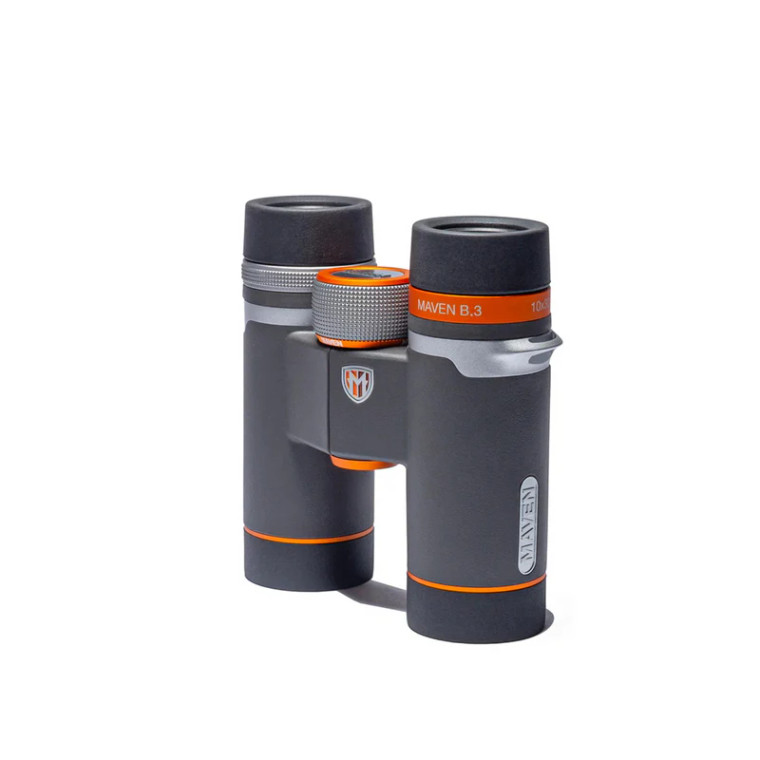

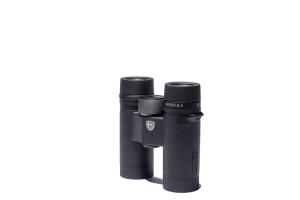

The Maven B.3 Binocular is our premium compact optic and is designed for those who demand superior optics housed in a small package. Though it’s compact, it is not to be underestimated - the B.3 covers a wide variety of uses and is a regular go-to for birders, naturalists, and travellers who strive to maintain minimalism.
The B.3 also features tack-sharp edge-to-edge clarity, generous depth of field, a wide field of view, and a silky focus mechanism.
The Maven B Series represents our elite line of optics, designed to fit your specific needs, delivered for a fraction of comparable binoculars’ costs and stacks up with the most celebrated and expensive binoculars in the world. Our modern sportsman-inspired designs are paired with the best available materials and state of the art technology to create an uncompromising optic.
Includes neoprene neck strap, lens caps and double-layered microfibre storage bag.
HIGHLIGHTS
-Premium Model
-Size: 4.7 in.
-Weight: 16.6 oz.
-Extra-Low Dispersion ED Glass
-Waterproof and Fog Proof
-Fully Multi-Coated Lenses
-Phase Correction Coating
-Exceptionally Clear, Bright, High Contrast Image
-Excellent Color Fidelity
-Tripod Adaptable
-Lifetime Warranty
Binocular Comparison Chart (PDF)
Binocular Manual (PDF)
B.3 Specifications:
Magnification | 8x |
Obj. lens diameter | 30mm |
Exit pupil | 3.75mm |
Field of View (FOV) | 8.2° |
Apparent FOV (FOV x Power) | 65.5° |
Field of view (ft/1000 yds) | 430 |
Brightness | 14.1 |
Light transmission (%) | 95.20% |
Twilight factor | 15.5 |
Multi Position Eyecups Y/N | Yes |
Eye relief | 15.1mm |
Near focus | 8.2ft |
Eye width adjustment | 56~73mm |
Dimension WxHxD | 4.7x4.6x1.6 |
Weight | 16.6 oz |
Lens constr. obj. | 3 groups 4 elements (ED) |
Lens constr. ocular | 4 groups 5 elements |
Prisms type | Schmidt-Pechan |
Prism reflective coating type | Dielectric coating |
Phase Correction Coating | Yes |
ED glass | Yes |
Lens coating | Scratch and Oil Resistant |
Diopter correction (dpt) | +/-4 |
Pressure tested to what pressure | 1m for 30 min. (IPX7) |
Storage temperature | -40°~158°F |
Functional temperature | -13°~140°F |
Frame material | Polymer |
Internal gas purged | Nitrogen |
Tripod Adaptable Y/N | Yes |
Origin | Japanese components assembled in the US |
