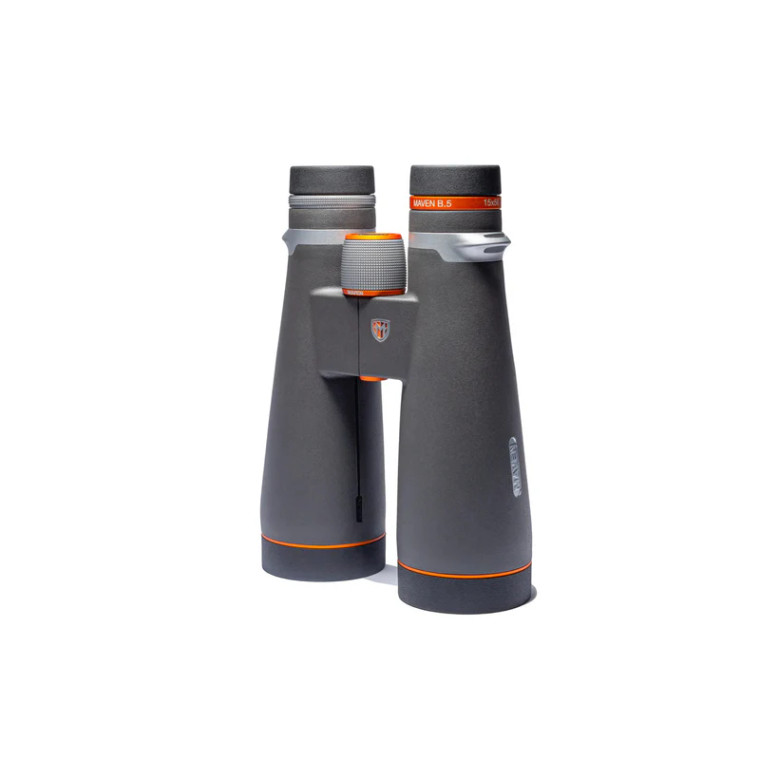

Maven Binoculars - B.5 - 12x56

Maven
SKU:
MVB51256BLD3

Log in for pricing

(No reviews yet)
Current Stock:

Built on the foundation of the award-winning B.2 binocular, the large objective B.5 features a small/lighter magnesium frame and Abbe-Koenig prism and is paired with the very same fluorite glass that’s featured in our S Series Spotting Scopes. In both 15x and 18x options, the B.5 is our most powerful binocular and the fluorite glass is a step above ED glass of similar-sized optics. One of the most modern optical systems on the market, this purpose-built binocular is designed to extend your range for those who require increased magnification and the ability to discern detail during those critical low-light periods when covering big, open country. The B.5 is our recommended rig for those who are looking to step up their magnification range, but prefer a lightweight system when carrying a spotting scope is out of the question.

The B.5 also features tack-sharp edge-to-edge clarity, crystal clear glass, considerable eye relief, and a silky focus mechanism.

The Maven B Series represents our elite line of optics, designed to fit your specific needs, delivered for a fraction of comparable binoculars’ costs and stacks up with the most celebrated and expensive binoculars in the world. Our modern sportsman-inspired designs are paired with the best available materials and state of the art technology to create an uncompromising optic.

Includes neoprene neck strap, lens caps and double-layered microfibre storage bag.

HIGHLIGHTS

-Premium Model
-Size: 8.2 in.
-Weight: 45 oz.
-Fluorite Glass
-Waterproof and Fog Proof
-Fully Multi-Coated Lenses
-Field Flattening Optical System
-Exceptionally Clear, Bright, High Contrast Image
-Excellent Color Fidelity
-Tripod Adaptable
-Lifetime Warranty

Binocular Comparison Chart (PDF)
Binocular Manual (PDF)

B.5 Specifications:

 Magnification 12x
Obj. lens diameter 56mm
Exit pupil 4.7mm
Field of View (FOV) 5.5°
Apparent FOV (FOV x Power) 66°
Field of view (ft/1000 yds) 289
Brightness 21.8
Light transmission (%) 92.60%
Twilight factor 25.9
Multi Position Eyecups Y/N Yes
Eye relief 17.4mm
Near focus 9.8ft
Eye width adjustment 56~75mm
Dimension WxHxD 6.1x8.2x2.6
Weight 45 oz
Lens constr. obj. groups 4 elements
Lens constr. ocular 4 groups 6 elements
Prisms type Abbe-Koenig
Prism reflective coating type N/A
Phase Correction Coating N/A
ED glass Fluorite
Lens coating Scratch and Oil Resistant
Diopter correction (dpt) more than +/-2
Pressure tested to what pressure 1m for 30 min. (IPX7)
Storage temperature -40°~158°F
Functional temperature -13°~140°F
Frame material Magnesium
Internal gas purged Nitrogen
Tripod Adaptable Y/N Yes
Origin Japanese components assembled in the US
