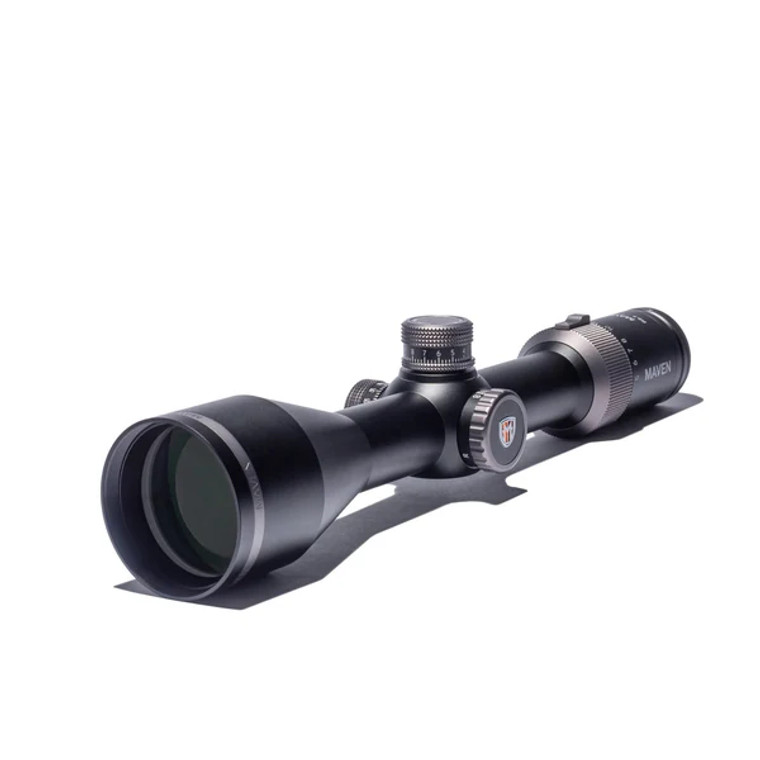

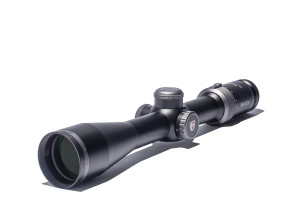

Maven Riflescope - RS.3 - 5-30X50 FFP

Maven

Log in for pricing

(No reviews yet)
Current Stock:

The RS.3, a long-range scope designed for shooters and hunters who demand more from their rifle scope. With an expansive magnification range and detailed reticle options, the RS.3 maximizes precision. This rifle scope features a first focal plane, a 5-30x zoom range, side parallax adjustment, exposed turrets with toolless zero, lockable zero-stop, custom turret options, and is one of the lightest full-featured hunting scopes on the market. With a broad magnification range and precise dialing capabilities, the RS.3 is our recommended rifle scope for all western big game species.

Just like all rifle scopes in the RS Series, the RS.3 features crystal clear ED glass for tack-sharp clarity, a silky focus mechanism, precision-milled adjustments, solid click detents, and durable anodising to resist heavy use.

The Maven RS Series represents our elite line of rifle scopes, designed to fit your specific needs, delivered for a fraction of the cost to comparable rifle scopes and stacks up with the most celebrated and expensive scopes in the world. Our modern sportsman inspired designs paired with the best available materials and state of the art technology create an uncompromising optic that meets the demands of the modern hunter.

Includes neoprene cover.

HIGHLIGHTS
-Premium Model
-Size: 13.03 in.
-Weight: 26.9 oz.
-First Focal Plane
-0.25 MOA/click or 0.1 MRAD/click
-3 Reticle Options: MOA-2, SHR-W, and SHR-MIL
-Extra-Low Dispersion ED Glass
-Exceptionally Clear, Bright, High Contrast Image
-Excellent Color Fidelity
-Phase Correction Coating

-Waterproof and Fog Proof
-Lifetime Warranty

Riflescope Comparison Chart (PDF)
Riflescope Manual (PDF)

RS.3 Specifications:

RS.3 MOA     RS.3 MIL
Focal plane First
Magnification range 5x - 30x
Obj. lens diameter 50mm
Tube diameter 30mm / 1.18in
Objective outer diameter 59mm
Eyepiece outer diameter 43.6mm
Overall length 331mm / 13.03in
Weight (without battery) 26.9oz / 764g
Internal adjustment range (MOA/MIL)
Travel Elevation 80 MOA   23 MIL
Travel Windage 50 MOA   14.8 MIL
Click value 0.250 MOA   0.1 MIL
Adjustment per turret revolution 15 MOA   6 MIL
Parallax adjustment 20y - Infinity
Exit pupil diameter @5x: 8.9mm @30x: 1.7mm
Eye relief @5x: 76-96mm @30x: 86-96mm
Field of view @ 100y @5x: 22.2ft @30x: 3.7ft
Front/Rear mounting length F: 45mm R: 62.6mm
Effective objective lens diameter @5x: 44.5mm @30x: 50mm
Field of view @5x: 4.24° @30x: 0.71°
Field of view, apparent @5x: 21° @30x: 21°
Diopter correction (dpt) +/-3
Light transmission 90.00%
Twilight factor  @5x: 14.9 @30x: 38.7
Functional temperature -4°~158°F
Submersion tightness / waterproof rating 3m depth
Gas purged Nitrogen
Reticle construction Etched Glass
Reticle options MOA-2 / SHR-W   SHR-MIL
Illuminated reticle Y/N No
Origin Made in Japan



RS.3 Reticle Subtensions:
