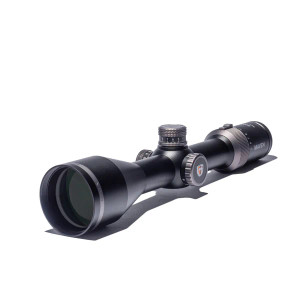

Maven Riflescope - RS.4 - 5-30x56 FFP

Maven

Log in for pricing

(No reviews yet)
Current Stock:

Competitive shooters, long range enthusiasts, and long range hunters demand a level of precision that is not found in standard hunting and target scopes. The RS.4 Riflescope was specifically designed for those who require maximum precision when minor adjustments can make all the difference.

This purpose-built rifle scope features a first focal plane, 5-30x zoom range, side parallax adjustment, 4 level red and green reticle illumination, and the option for MOA or MIL-based reticles. Mechanical zero stop with positive stops ensure a return to your original zero after every dial. With a broad magnification range and precision dialing capabilities, the RS.4 is our recommended rifle scope for precision rifle shooting competitions and long range enthusiasts.

Just like all rifle scopes in the RS Series, the RS.4 features crystal clear ED glass for tack-sharp clarity, a silky focus mechanism, precision-milled adjustments, solid click detents, and durable anodising to resist heavy use.

The Maven RS Series represents our elite line of rifle scopes, designed to fit your specific needs, delivered for a fraction of the cost to comparable rifle scopes and stacks up with the most celebrated and expensive scopes in the world. Our modern sportsman inspired designs paired with the best available materials and state of the art technology create an uncompromising optic that meets the demands of the modern hunter.

Includes neoprene cover.


HIGHLIGHTS

-Premium Model
-Size:  12.8 in.
-Weight:  35.4 oz.
-First Focal Plane
-0.25 MOA/click or 0.1 MRAD/click
-No-Shim Reset-able Zero Stop
-4 reticle options: SHR-W (MOA), MOA-2 (MOA), SHR-W (MIL), and CFR-MIL (MIL)
-4 Level Red and Green Reticle Illumination
-34mm Tube
-Extra-Low Dispersion ED Glass
-Exceptionally Clear, Bright, High Contrast Image
-Excellent Color Fidelity
-Phase Correction Coating

-Waterproof and Fog Proof
-Lifetime Warranty

Riflescope Comparison Chart (PDF)
Riflescope Manual (PDF)

RS.4 Specifications:

RS.4 MOA     RS.4 MIL
Focal plane First
Magnification range 5x - 30x
Obj. lens diameter 56mm
Tube diameter 34mm / 1.34in
Objective outer diameter 65mm
Eyepiece outer diameter 42mm
Overall length 325mm / 12.79in
Weight (without battery) 35.4oz / 1004g
Internal adjustment range (MOA/MIL)
Travel Elevation 120MOA   35.5 MIL
Travel Windage 50 MOA   14.6MIL
Click value 0.250 MOA   0.1 MIL
Adjustment per turret revolution 25MOA   10 MIL
Parallax adjustment 15y - Infinity
Exit pupil diameter @5x: 8.9mm @30x: 1.9mm
Eye relief @5x: 78-92mm @30x: 86-92mm
Field of view @ 100y @5x: 23.3ft @30x: 3.9ft
Front/Rear mounting length F: 61mm R:42mm
Effective objective lens diameter @5x: 44.5mm @30x: 56mm
Field of view @5x: 4.46° @30x: 0.74°
Field of view, apparent @5x: 22° @30x: 22°
Dioptercorrection (dpt) +/-3
Light transmission 91.84%
Twilight factor @5x:16.73 @30x:40.98
Functional temperature -4°~158°F
Submersion tightness / waterproof rating 3m depth
Gas purged Nitrogen
Reticle construction Etched Glass
Reticle options MOA-2 / SHR-W   SHR-MIL / SHR-W/ CFR-MIL
Illuminated reticle Y/N Yes Red/Green
Origin Made in Japan



RS.4 Reticle Subtensions:
